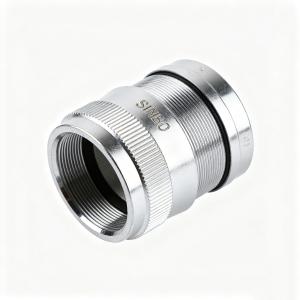

The fire hose quick connector is a critical mission-specific module for special robots, designed for high-risk environments such as explosion-proof, rescue, and aerospace operations. Manufactured from full brass through CNC machining centers (e.g., VMC1060 series with 0.02~0.03mm precision), it ensures quick connection and reliable sealing. This connector enables rapid coupling between hoses, fire trucks, hydrants, or water guns, reducing connection time to 7.8 seconds (80% faster than traditional methods), significantly enhancing robot response efficiency in firefighting tasks.
| Parameter Category | Value | Remarks |
|---|---|---|
| Model | KD50/65/80/100 | Multi-caliber hose compatibility |
| Material | Full Brass | High strength, corrosion-resistant |
| Working Pressure | ≤2.5 MPa | Meets high-pressure firefighting demands |
| Connection Time | ≤7.8 seconds | Traditional methods take 36s |
| Sealing Performance | Zero Leakage | Multi-layer seals (rubber + metal seat) |
| Operating Temperature | -40°C~120°C | Explosion-proof and flame-retardant |
| Machining Precision | 0.02~0.03mm | CNC precision (VMC1060-based) |
| Certification | GB12514.1-2005, CCCF | China compulsory fire product certification |
Custom designs tailored to robot platform requirements:
